Practice Memory Diagram


Snippet

Challenge Memory Diagram: Create a memory diagram for the following code snippet. Identify which lines that base case(s) or recursive case(s) occur on.

"""Recursion practice with palindromes."""

def is_palindrome(word: str, index: int) -> bool:
    """Returns True if word is a palindrome and False otherwise."""
    if index >= int(len(word) / 2):
        return True
    elif word[index] == word[len(word) - (index + 1)]:
        return is_palindrome(word=word, index=index + 1)
    else:
        return False

def main() -> None:
    """The main function."""
    print(is_palindrome(word="noon", index=0))
    print(is_palindrome(word="110", index=0))

main()

Solution

The base cases occur on lines 5-6 and 9-10. If you reach the base case on lines 5-6, that means you made it through the whole word without finding any differences between letters that should be the same, so you can return True as the final result. If you make it to lines 9-10, that means a difference was found between letters that should be the same, so word is not a palindrome. The recursive case is on lines 7-8.

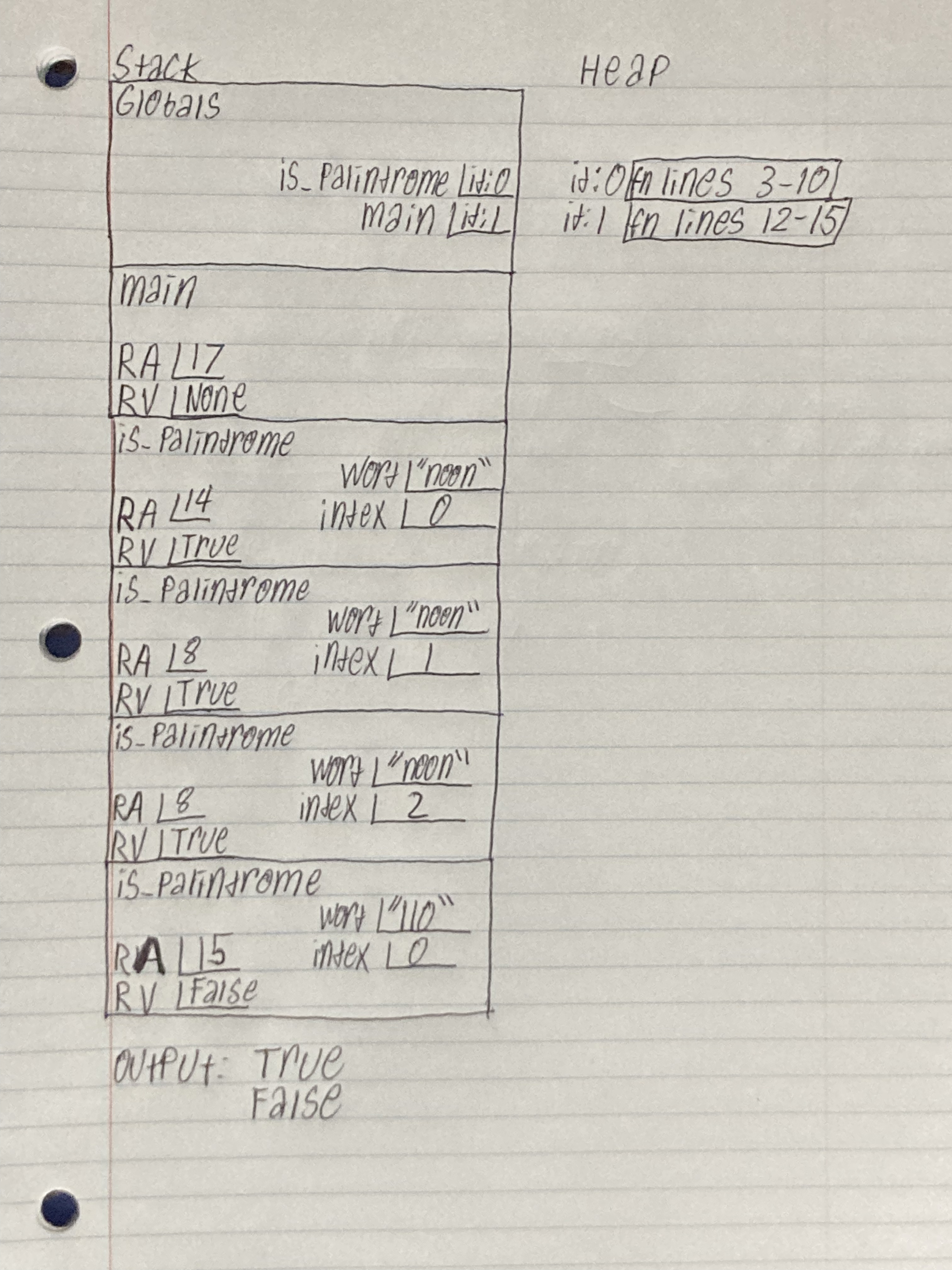

Memory diagram for palindrome example.

Image Description

(Coming Soon)

Contributor(s): Benjamin Eldridge
