Snippet
Diagram the following code snippet:
class Knight:
"""A medieval Knight."""
name: str
def __init__(self, name: str):
self.name = name
def __str__(self) -> str:
return f"Sir {self.name}"
class Castle:
"""A medieval castle with a drawbridge for crossing a surrounding moat and a guarding knight."""
guard: Knight
drawbridge_up: bool
def __init__(self, guard: Knight, bridge_up: bool):
self.guard = guard
self.drawbridge_up = bridge_up
def __str__(self) -> int:
if self.drawbridge_up:
return f"Guarded by {self.guard} and closed to outsiders!"
else:
return f"Guarded by {self.guard} but open to all!"
def open(self) -> None:
if self.drawbridge_up:
print("Let down the bridge!")
self.drawbridge_up = False
else:
print("Already open!")
def close(self) -> None:
if not self.drawbridge_up:
print("Pull up the bridge!")
self.drawbridge_up = True
else:
print("Already closed!")
lancelot: Knight = Knight("Lancelot")
my_castle: Castle = Castle(lancelot, False)
print(my_castle)
my_castle.close()
print(my_castle)Solution

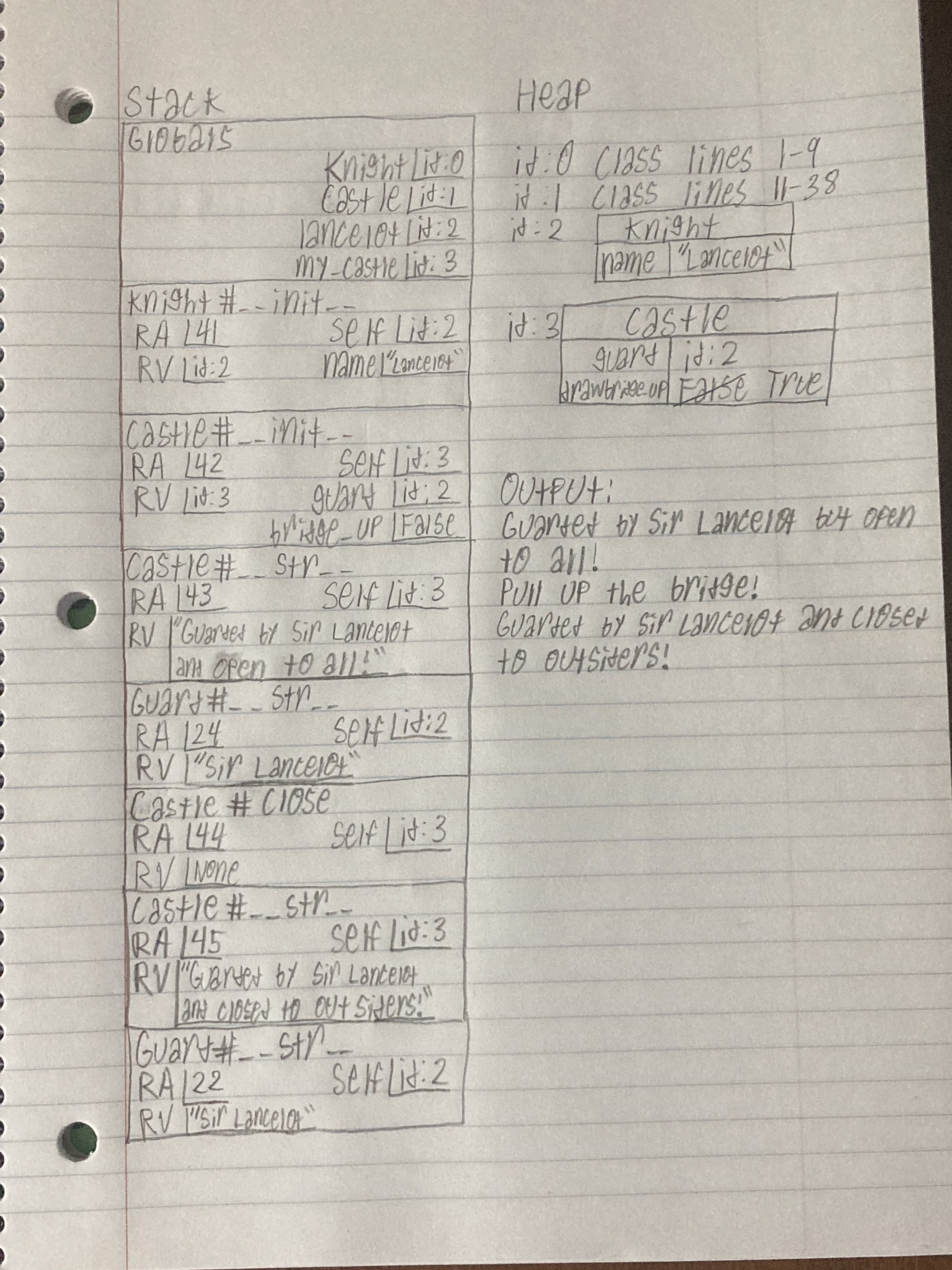

SOLUTION
